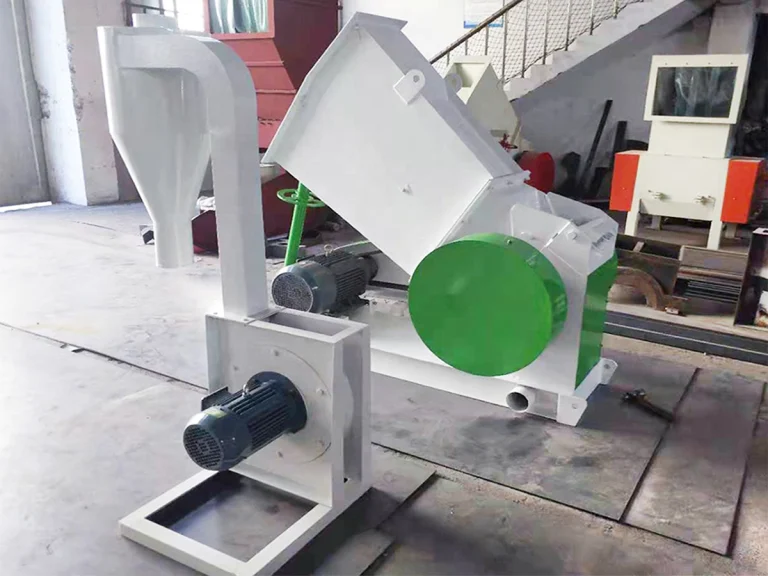

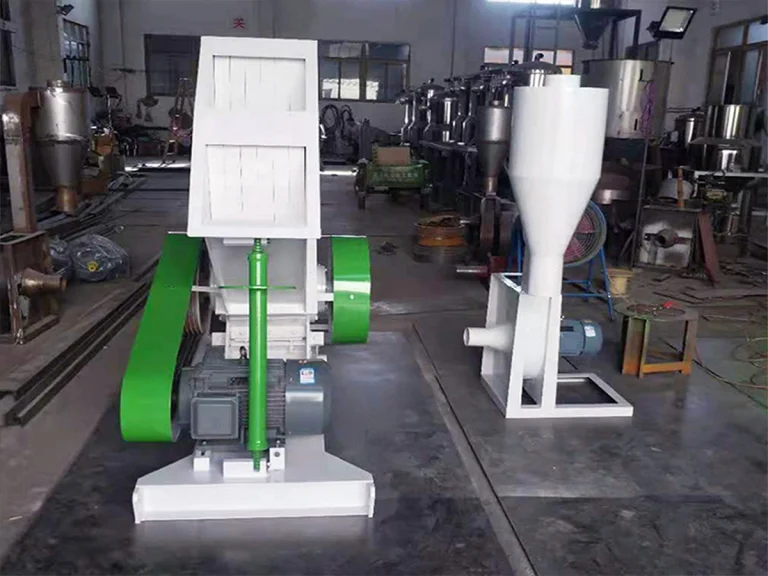

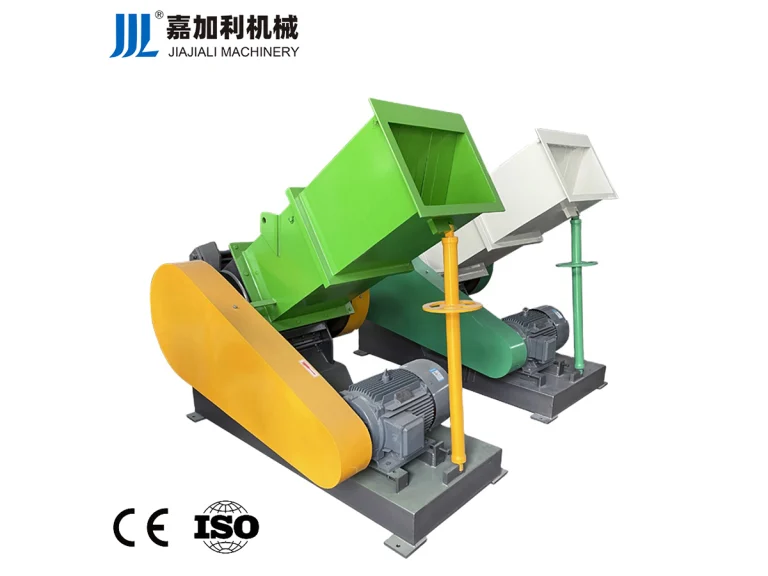

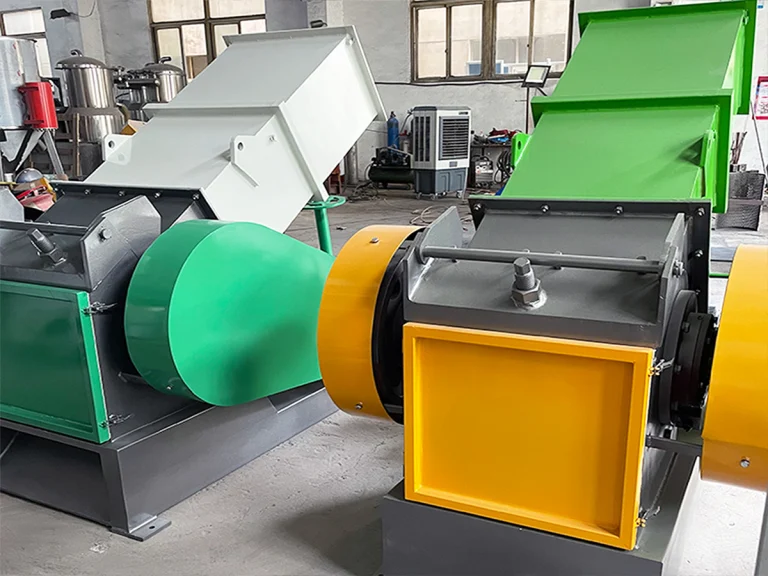

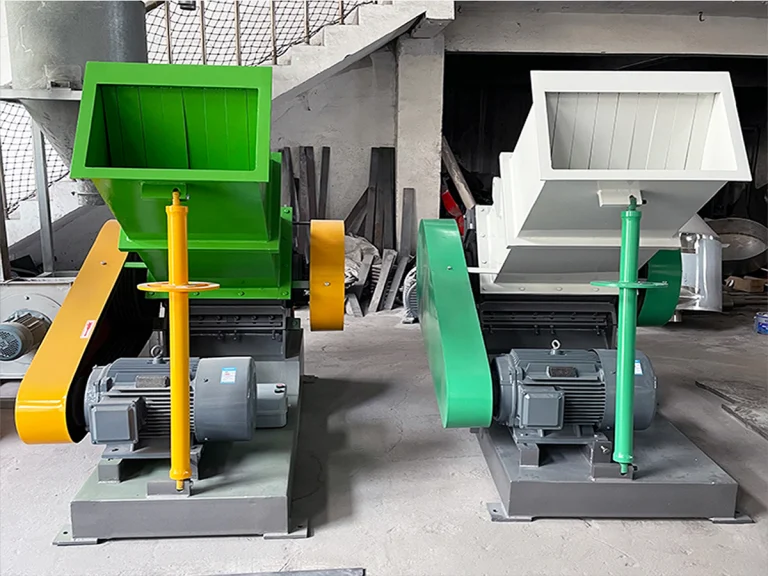

The plastic crusher is an essential auxiliary equipment for plastic production recycling and material pretreatment. It is professionally developed for crushing and recycling plastic profiles, pipes, sheets, leftover materials and defective products. Equipped with high-hardness wear-resistant alloy blades, it achieves strong crushing power and efficient material breaking. The optimized internal cavity and blade gap structure ensure uniform discharging particle size, effectively reduce fine powder waste, and improve material reuse rate. The whole machine adopts closed silent design with stable operation and low failure rate. It supports long-term continuous industrial operation, and is widely used in plastic processing factories, waste plastic recycling plants and modified material production lines.
Technical Parameters:
| Model | PC400 | PC500 | PC600 | PC700 | PC800 | PC800 | PC900 | PC1000 |
| Power (KW) | 7.5 | 11 | 15 | 22 | 30 | 30 | 37 | 45 |
| Fixed knife quantity (pcs) | 2 | 2 | 4 | 4 | 4 | 4 | 4 | 4 |
| Moving knife quantity (pcs) | 5 | 15 | 18 | 21 | 24 | 24 | 27 | 30 |
| Crushing capacity (kg/h) | 100-150 | 200-250 | 300-350 | 450-500 | 600-700 | 600-700 | 700-800 | 800-900 |
| Feed inlet diameter (mm) | 450*350 | 550*450 | 650*450 | 750*500 | 850*600 | 850*600 | 950*700 | 1050*800 |
| Machine weight (kg) | 550 | 780 | 1550 | 1900 | 2600 | 2600 | 3600 | 4300 |
| Overall dimension (mm) | 900*780*1400 | 1100*880*1600 | 1400*1300*2450 | 1500*1400*2500 | 1550*1550*2450 | 1550*1550*2450 | 1700*1680*2860 | 1800*1760*2800 |
