Plastic Milling Machine

Key Selling Points

  • High-speed fine grinding, adjustable powder fineness freely
  • Closed dust-proof structure, zero dust overflow and clean production
  • Low-temperature grinding design, no material burning or deterioration
  • High grinding efficiency, uniform powder texture and high yield
Inquire

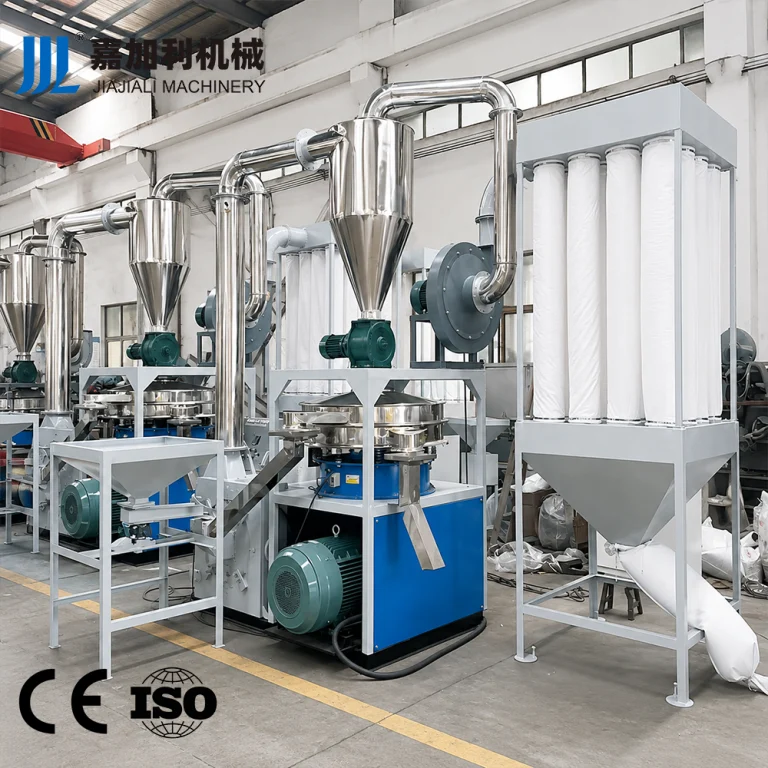

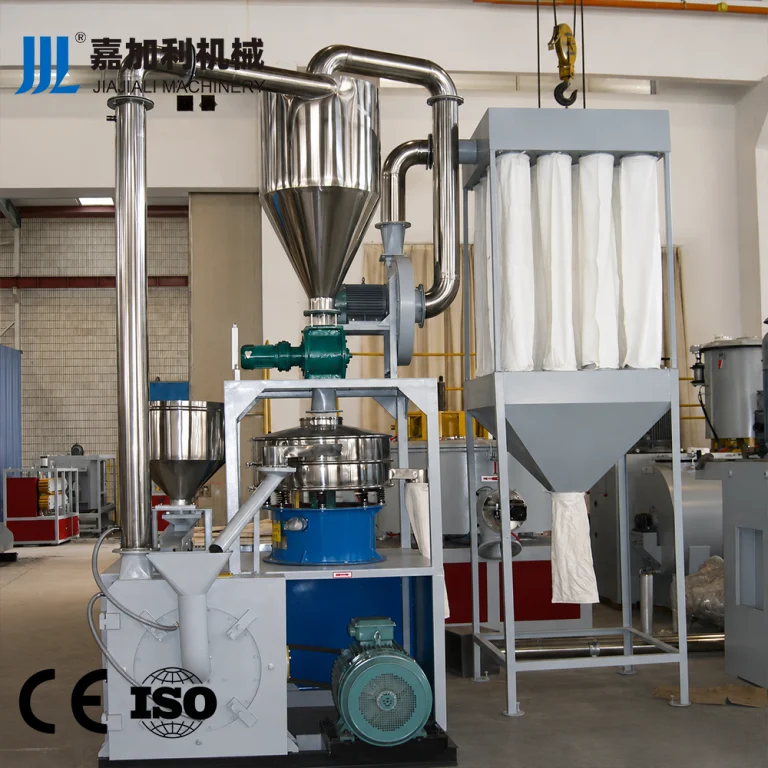

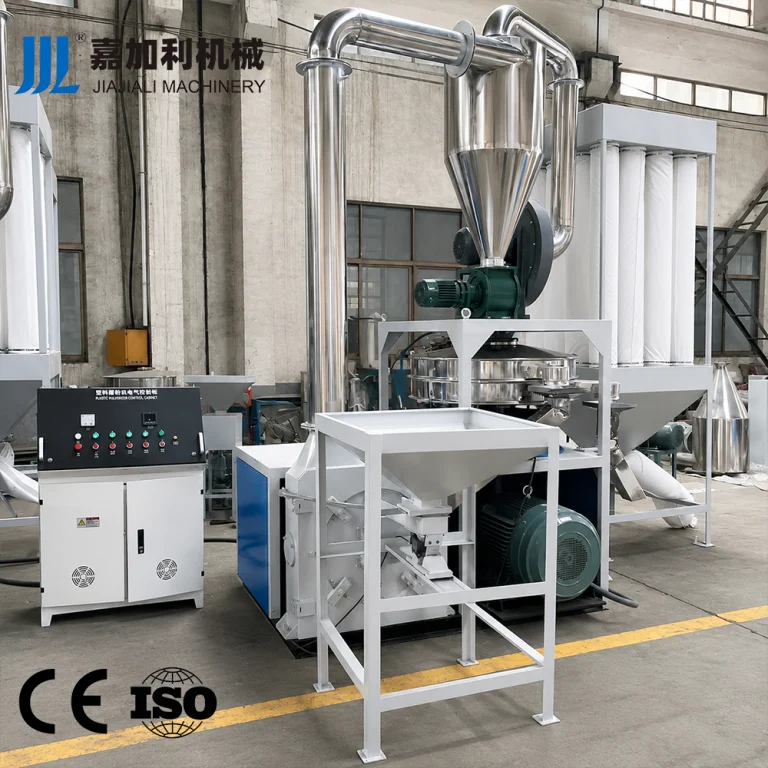

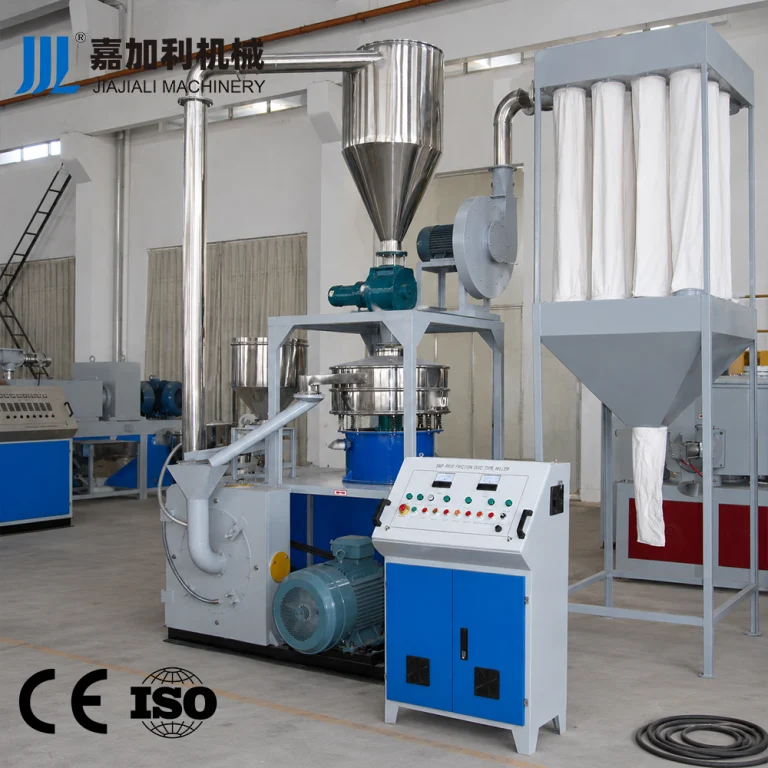

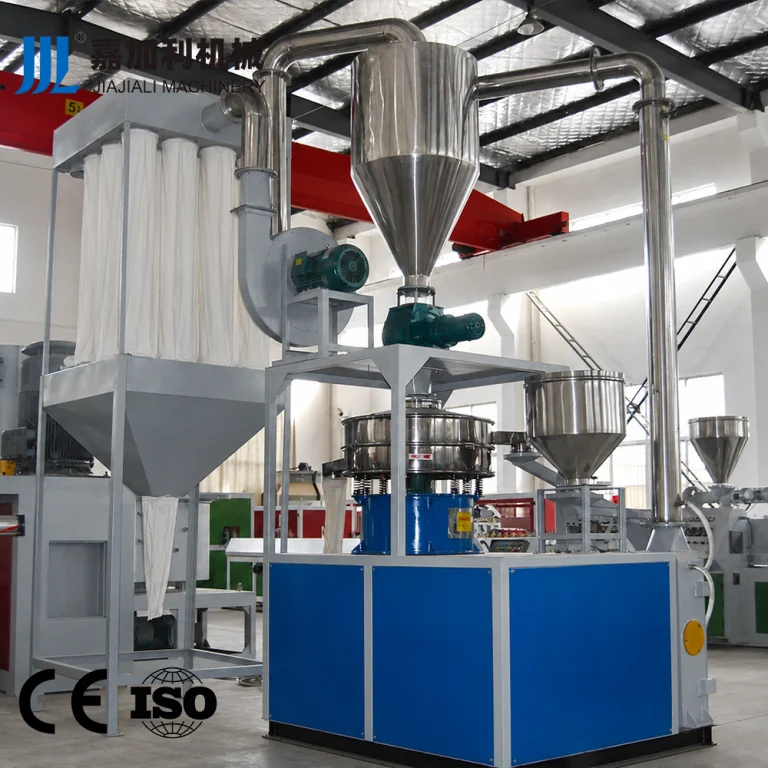

The plastic milling machine is special fine processing equipment for plastic particle and sheet powder making, mainly used for fine grinding of PVC, PE and other plastic materials. Adopting high-speed rotary grinding and low-temperature air cooling technology, it avoids material overheating, burning and molecular degradation during grinding. The equipment supports free adjustment of powder fineness to meet different production process requirements. The fully closed circulating structure completely solves dust pollution problems, ensures workshop cleanliness. The finished powder has uniform fineness, no particles and good fluidity, which is widely used in plastic powder modification, powder coating, auxiliary raw material processing and other industries.

Technical Parameters:

ModelSWM-400SWM-500SWM-600SWM-800
Cutter disc390±1483±1583±1783±1
Motor power (kw）30374575
Weight (kg)1000128016802180
Overall dimension (mm)1250*1500*15005600*1500*29005900*1600*32006200*2000*3500
Output (kg/h)50-120120-260160-450250-850

Industry Applications

Fine powder processing of PVC recycled materials and new materials
Plastic powder raw material preparation for modified plastic production
Ultra-fine plastic powder processing for powder coating industry
Fine grinding pretreatment of plastic auxiliary formula materials

Product Brochure

Download Brochure (Fill form)

Frequently Asked Questions

What materials is the plastic milling machine suitable for?

It is mainly used for fine grinding of PVC, PE and other soft and hard plastics, suitable for plastic particle and sheet milling.

Can the powder fineness be adjusted?

Yes, the equipment is equipped with fineness adjusting device, which can freely adjust the grinding mesh according to production needs.

Will high-temperature grinding damage material performance?

Equipped with air cooling circulating system, low-temperature constant grinding, no material burning, no performance deterioration.

Is the production process dust-free?

Fully closed circulating grinding structure, no dust overflow, realizing environmentally friendly and clean production.
