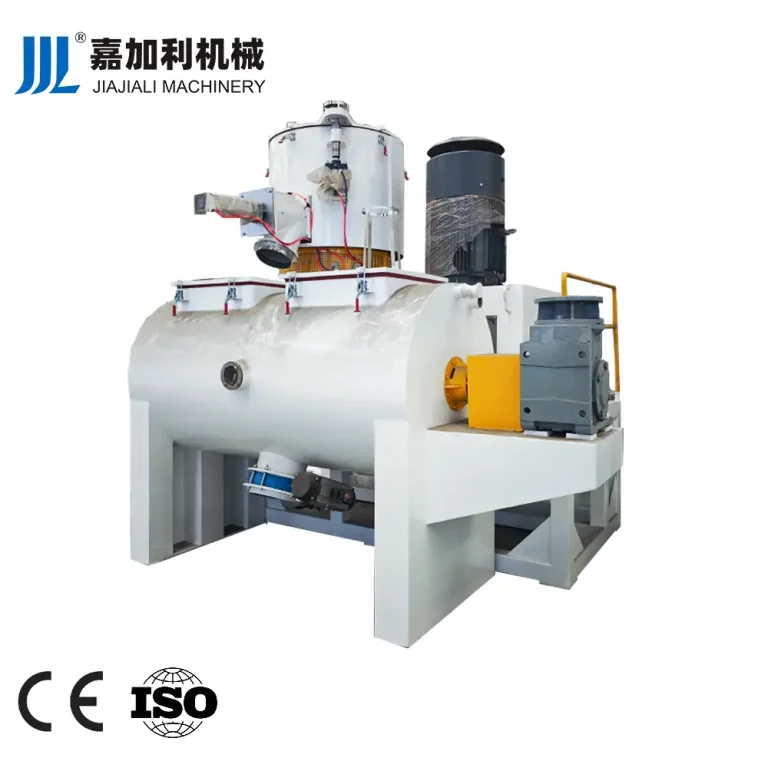

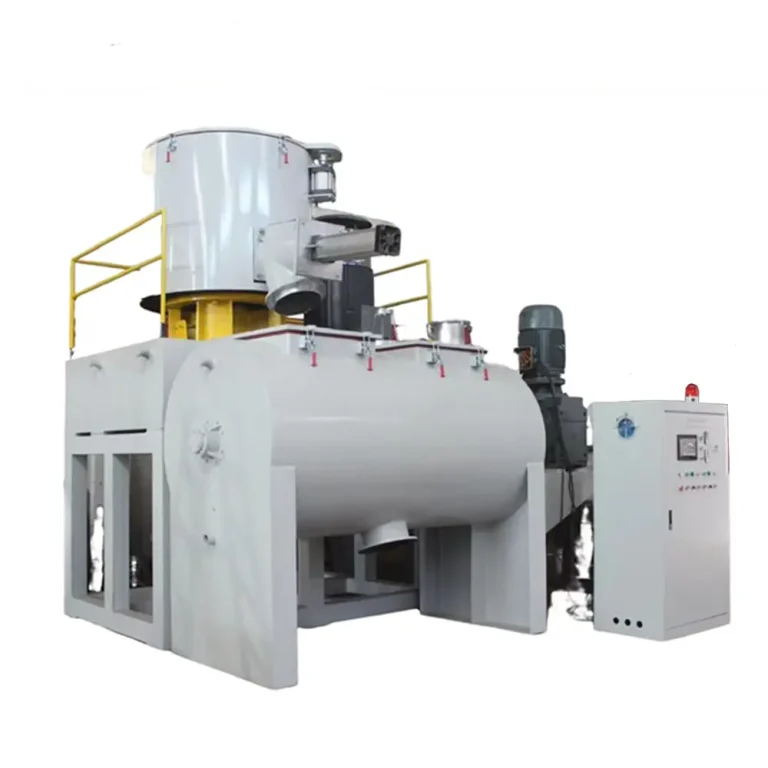

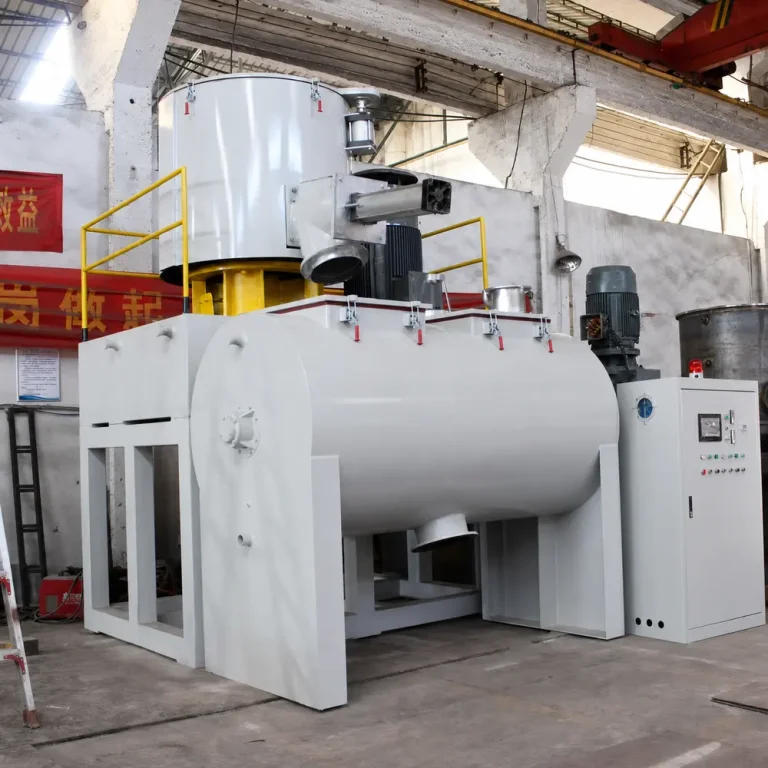

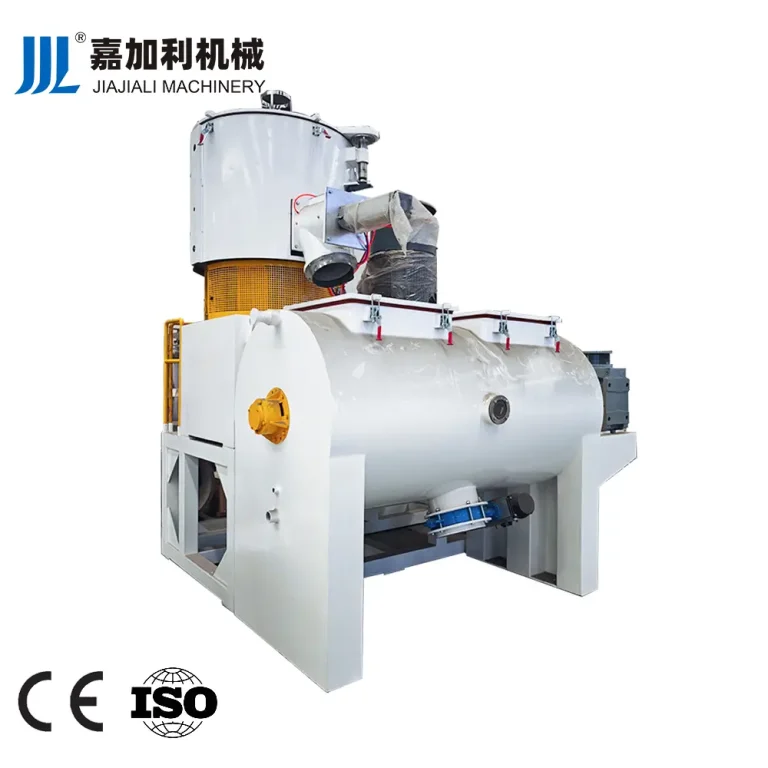

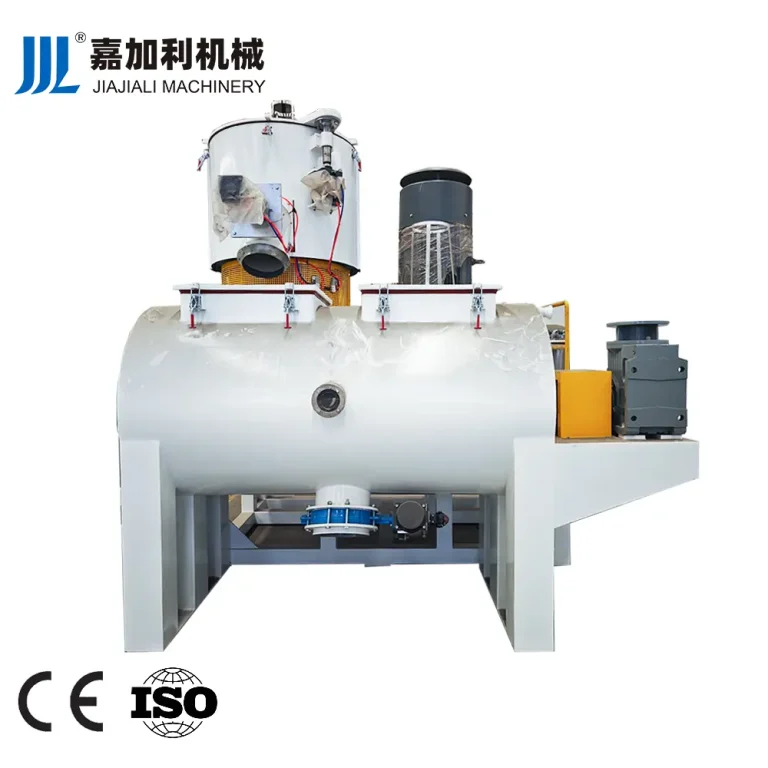

The SRL-W horizontal hot and cold mixing unit is an upgraded high-output compounding equipment launched by Jiajiali Machinery. Different from traditional vertical mixing units, it adopts a horizontal large-area heat dissipation structure to achieve faster and more uniform cooling effect. The equipment realizes high-speed hot mixing dispersion and low-speed horizontal cooling storage, effectively solving material caking, color difference and uneven cooling problems in high-volume production. With low noise, low wear and easy maintenance, this horizontal mixing unit is specially suitable for high-end PVC products, modified plastics and large-batch plastic compounding industries.
Technical Parameters
| Model | Total cubage(L) | Effective cubage(L) | Motor power(kw) | Heating Method | Cooling Method | Discharging Method |
| SRL-W300/1000 | 300/1000 | 210/700 | Nov-55 | Self-friction/ Electrical heating | Water cooling | Pneumatic |
| SRL-W500/1600 | 500/1600 | 350/1100 | 75/15 | |||
| SRL-W500/2000 | 500/2000 | 350/1400 | 75/22 | |||
| SRL-W800/2000 | 800/2000 | 560/1400 | 110/22 | |||
| SRL-W800/2500 | 800/2500 | 560/1750 | 110/30 | |||
| SRL-W1000/3000 | 1000/3000 | 700/2450 | 132/37 | |||
| SRL-W1500/4500 | 1500/4500 | 1050/3200 | 200/45 |
